Dome Acoustic Light with E26 LED Bulb Base Sound Baffles LL0410SAC

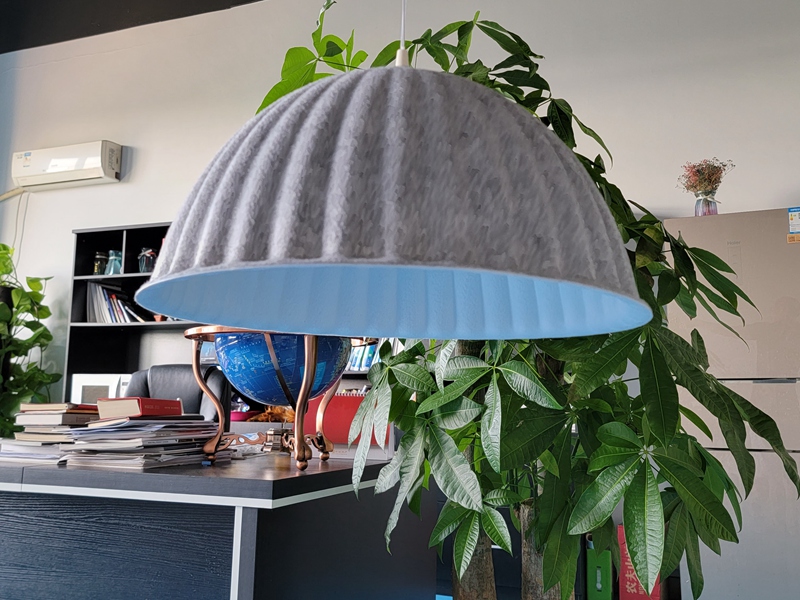

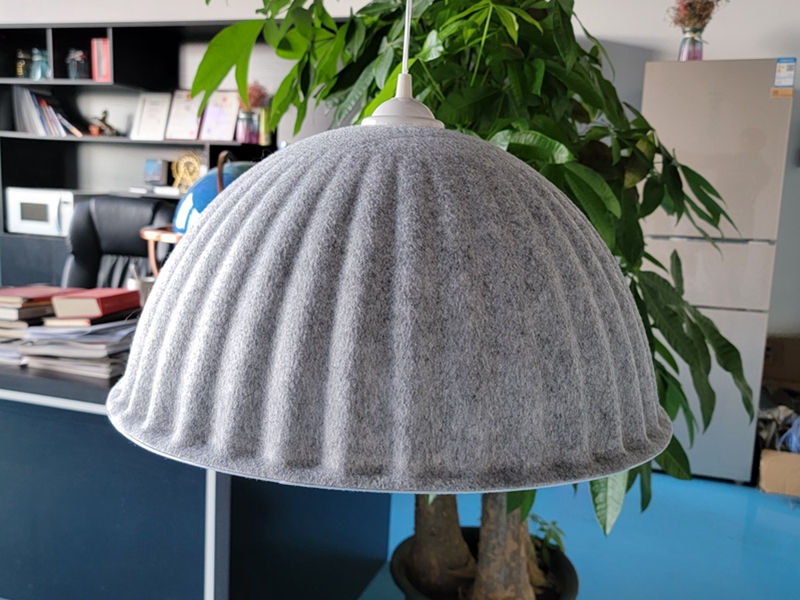

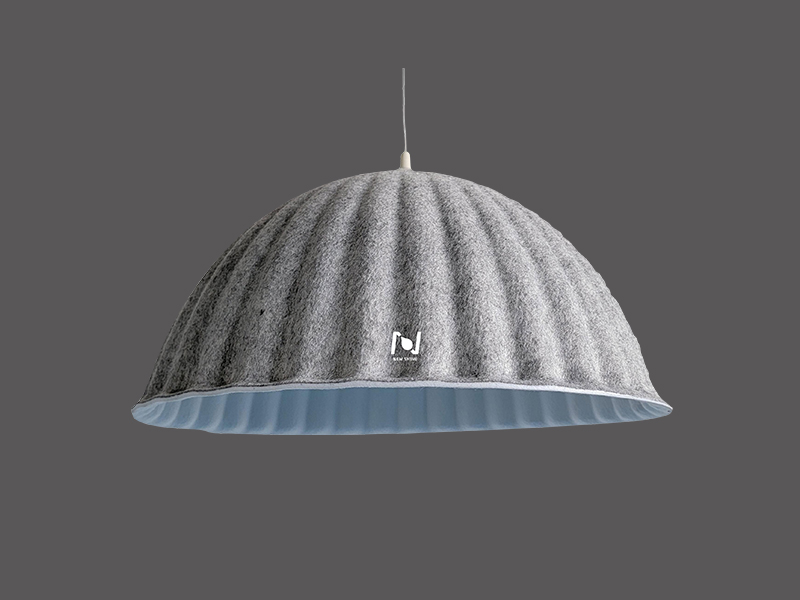

This DOME acoustic light fixture combines lighting and sound-absorbing materials, with two different acoustic felt colors inside and outside to enhance the visual appeal of the space. Additionally, the use of a dome design adds a sleek and modern look to the space.

The lamp features an E26 bulb base inside and is made of 0.16"(4mm) acoustic felt material, which is sound-absorbing, non-toxic, non-allergenic, and non-irritant. With its ability to improve acoustics and provide stylish lighting, it is the ideal solution for creating a more comfortable and aesthetically pleasing environment.
Mark:
Acoustic Color:
SKU:
Availability:

PDF Export

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Specification


Model: LL0410SAC

◆ Diameter(INCH): D17.8" x H10.0", D24.0" x H12.0", D30.3" x H15.7"

 Diameter(MM): D450mm x H250mm, D610mm x H305mm, D770mm x H400mm

 Material: 0.16" (4mm) Polyster fiber

◆ Mounting: Pendant

◆ Package: PE Foam with master carton

Features


 Flexible MOQ.

 5 years warranty.

 E26 base for LED bulb, easy to install and replace.

 NRC 0.65

 Permanent flame retardant ASTM E84 Class A.

 Combining the elements of color, shape, and sound

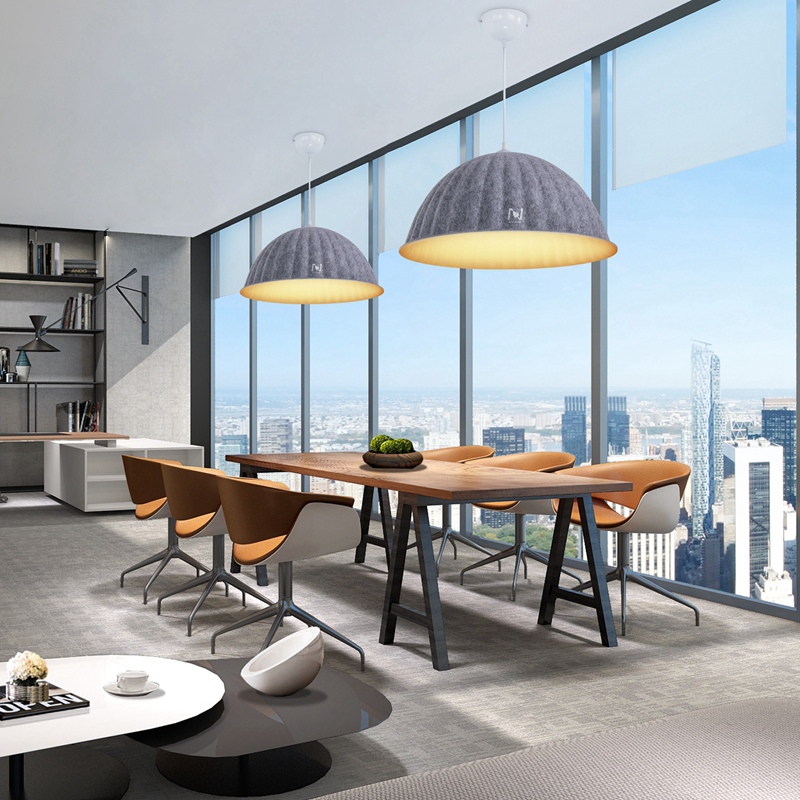

 Good for use in hotel, office, shop, home, etc.

 The packaging has passed strict tests which is suitable for air shipping.


Other Products In The Same Family

Model No. Power Size (mm/inch) Input Voltage(v) CRI
CCT
(K)
PF
Efficacy
(LM/W)
Body Color Beam (degree) Installation Material
LL0410SAC-D18H10 /
D450*H250 /
D17.8*H10.0
Screw-in E26 base is supplied for you to add bulb at site

as picture

/ Suspended with 1.5m suspension safety cable 0.16"(4mm) Polyster fiber
LL0410SAC-D24H12 /
D450*H305 /
D24.0*H12.0
LL0410SAC-D30H16 /
D450*H400 /
D30.3*H15.7




Download

Data Sheet

Data Sheet

Catalogue

Catalogue

Installation

Installation

IES Files

IES Files
