Linear Tube lights LED full illumination light architectural lighting LL0178-VS
architectural lighting manufacturers
Product specification:
Power | 20W/m |
Input Voltage | AC220-240V or AC120-277V or DC24V |
CRI(Ra) | ≥90 |
CCT(K) | 3000/3500/4000/5000 |
PF | ≥0.9 |
Efficiency | 70lm/w |
Material | PMMA |
Product size | L300/600/900/1200/1500*D30/50/80mm/L11.8/23.6/35.4/47.2/59.1*D1.2/2.0/3.1" |
Other products in the same family:
Model No. | Power | Size (mm) | Size (inch) | Input Voltage (V) | CRI | CCT(K) | PF | Efficacy (LM/W) | Body Color | Beam (degree) | Installation | Material |
LL0178-VS-300-30 | 20w/m | L300*D30mm | L11.8*D1.2" | AC220-240V or AC120-277V or DC24V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 70lm/w | White | 360 | Vertical Suspended | PMMA |
LL0178-VS-600-30 | 20w/m | L600*D30mm | L23.6*D1.2" | |||||||||
LL0178-VS-900-30 | 20w/m | L900*D30mm | L35.4*D1.2" | |||||||||
LL0178-VS-1200-30 | 20w/m | L1200*D30mm | L47.2*D1.2" | |||||||||
LL0178-VS-1500-30 | 20w/m | L1500*D30mm | L59.1*D1.2" | |||||||||
LL0178-VS-300-50 | 20w/m | L300*D50mm | L11.8*D2.0" | AC220-240V or AC120-277V or DC24V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 70lm/w | White | 360 | Vertical Suspended | PMMA |
LL0178-VS-600-50 | 20w/m | L600*D50mm | L23.6*D2.0" | |||||||||
LL0178-VS-900-50 | 20w/m | L900*D50mm | L35.4*D2.0" | |||||||||
LL0178-VS-1200-50 | 20w/m | L1200*D50mm | L47.2*D2.0" | |||||||||
LL0178-VS-1500-50 | 20w/m | L1500*D50mm | L59.1*D2.0" | |||||||||
LL0178-VS-300-80 | 20w/m | L300*D80mm | L11.8*D3.1" | AC220-240V or AC120-277V or DC24V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 70lm/w | White | 360 | Vertical Suspended | PMMA |
LL0178-VS-600-80 | 20w/m | L600*D80mm | L23.6*D3.1" | |||||||||
LL0178-VS-900-80 | 20w/m | L900*D80mm | L35.4*D3.1" | |||||||||
LL0178-VS-1200-80 | 20w/m | L1200*D80mm | L47.2*D3.1" | |||||||||
LL0178-VS-1500-80 | 20w/m | L1500*D80mm | L59.1*D3.1" |
Product specialty:
1. Available in 5 standard sizes.

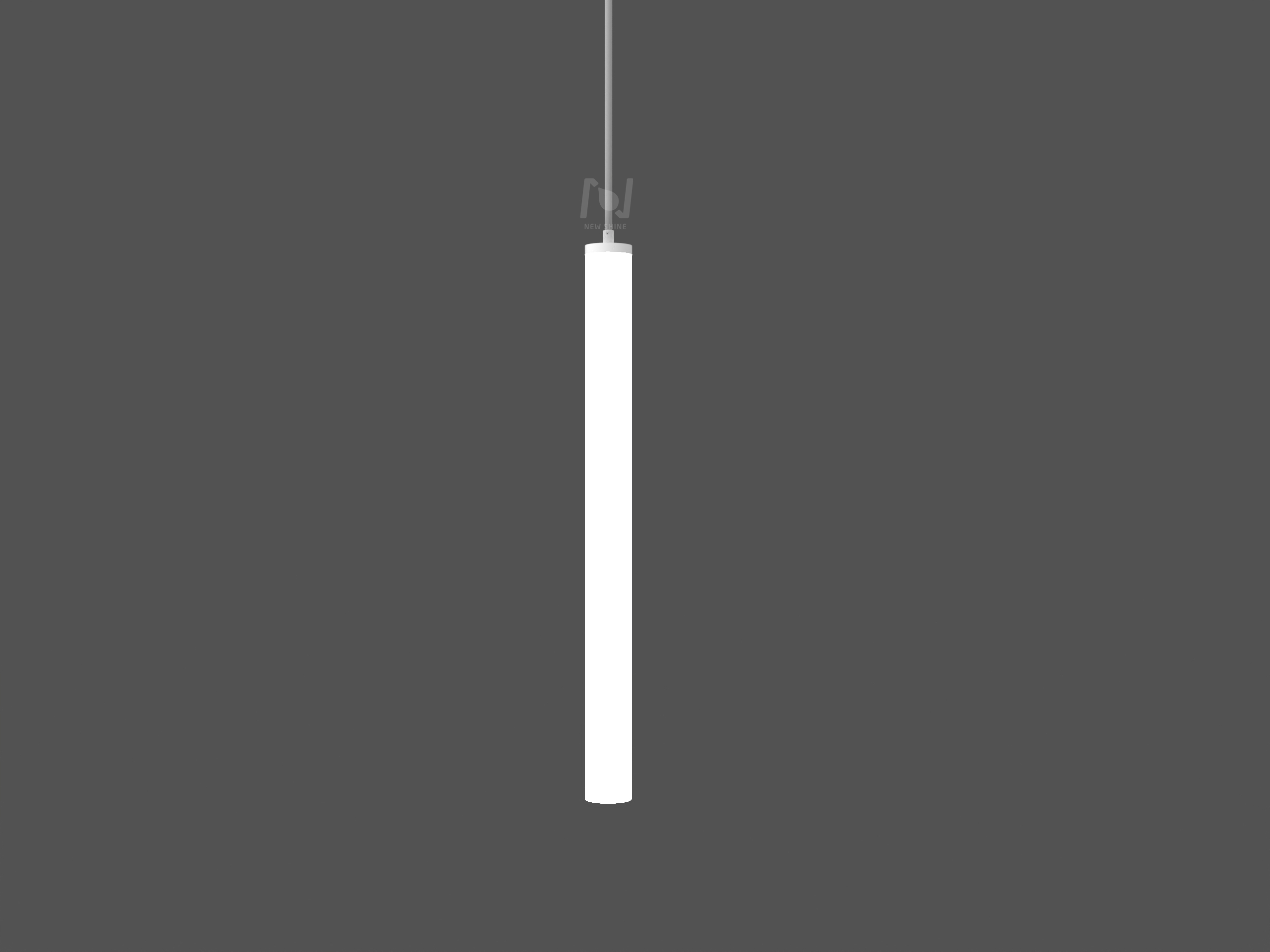

2. Unique linear tube style with 360 degree full light emitting.
3. 3 Tube dia: 1.2"(30mm), 2.0"(50mm), 3.1"(80mm)
4. Vertical suspended, horizontal suspended, wall mounted 3 installation style.

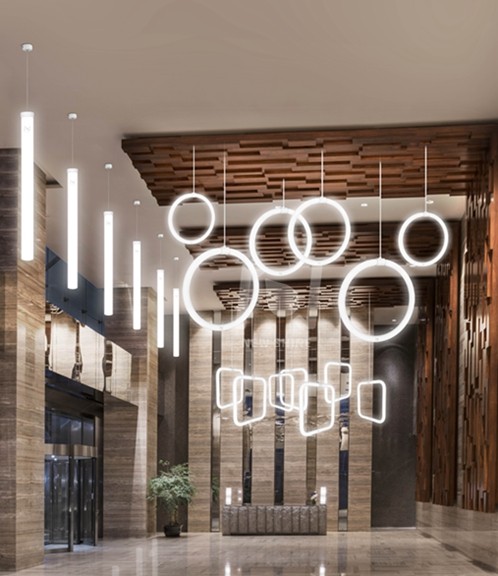

Wide Applications in hotel, office, shop, restaurant, etc.
Our core competencies:
1. New Shine Lighting focus on LED architectural lighting for years, RD and sales team have worked in lighting average over 10 years!
2. Solid project experience for Europe, North America, Southeast Asia and Middle East market!
3. Quick architectural lighting solutions provider, quick quotation within an hour and quick delivery in 2-4 weeks!
4. High cost performance with innovative design.
Client Feedback:
"Thank you so much. Looking forward to more transactions with you!"
