Suspended linear led light fixture from architectural lighting manufacturers LL0155S-2400
Product specification:
Power | 80W |
Input Voltage | AC120-277V or AC220-240V |
CRI(Ra) | ≧90 |
CCT(K) | 3000/3500/4000/5000 |
PF | ≥0.9 |
Efficiency | ≥105 lm/w |
Material | Aluminum, pc |
Product size | 50*75*2400mm/1.97*2.95*94.49" |
Other products in the same family:
| Model No. | Power | Size | Input Voltage | CRI | CCT | PF | Efficacy | Body Color | Beam | Installation | Material |
LL0101S-1200 | 36W | 35*75*1200mm / 1.38*2.95*47.24” | AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 105lm/w | White/ black | 120 | Suspended | Alu+PC |
LL0101S-1500 | 50W | 35*75*1500 mm / 1.38*2.95*59.06” | |||||||||
LL0101S-2400 | 70W | 35*75*2400mm / 1.38*2.95*94.49” | |||||||||
LL0155S-1200 | 40W | 50*75*1200mm / 1.97*2.95*47.24” | AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 105lm/w | White/ black | 120 | Suspended | Alu+PC |
LL0155S-1500 | 50W | 50*75*1500mm / 1.97*2.95*59.06” | |||||||||
LL0155S-2400 | 80W | 50*75*2400mm / 1.97*2.95*94.49” | |||||||||
LL0129S-1200 | 50W | 75*75*1200mm / 2.95*2.95*47.24 ” | AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 105lm/w | White/ black | 120 | Suspended | Alu+PC |
LL0129S-1500 | 70W | 75*75*1500mm / 2.95*2.95*59.06” | |||||||||
LL0129S-2400 | 100W | 75*75*2400mm / 2.95*2.95*94.49” |
Special Feastures:
1. LED linear lighting can be seamless connection with different length available, unique design of endcap, no visible screws.
2. Good for use in school, office, meeting room, etc.
3. Can be suspended and surface mounted.
4. Warranty is 5 years!

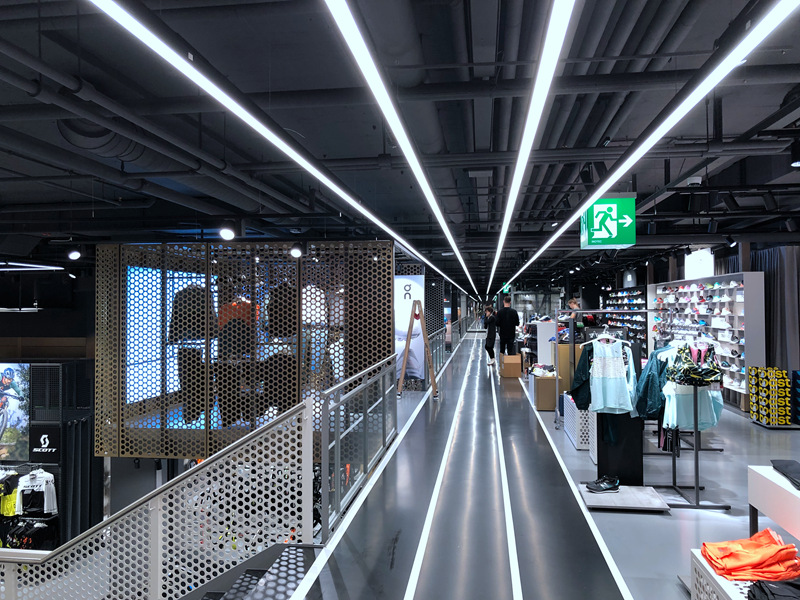

Wide Applications in hotels, offices, libraries, museums, etc
Why choose us?
1. New Shine Lighting focus on led architectural lighting design and manufacturing for years, RD and sales team have worked in lighting average over 10 years!

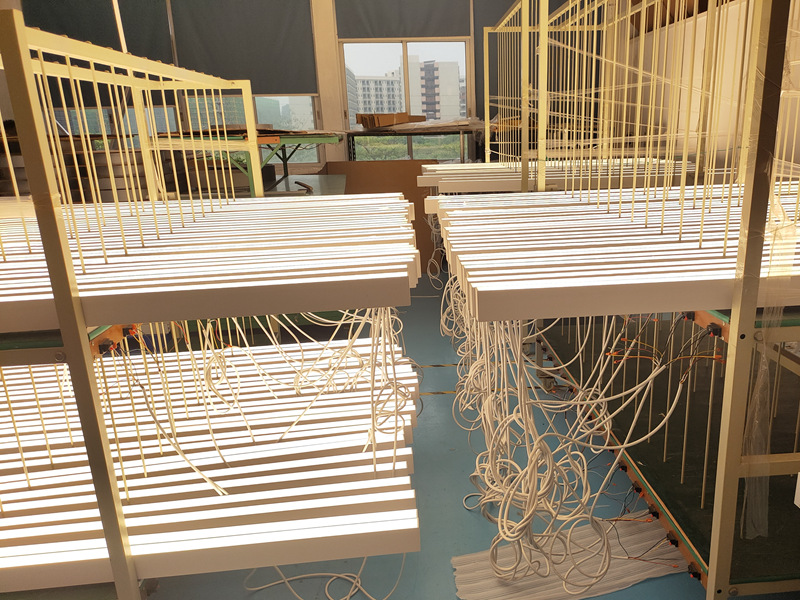

2. All our LED linear lights are strictly qualified/tested during RD process and before shipment in our test lab. We conduct heat test, high temp test, switch on/off test, current test, long term aging test, weigh test, package drop test, etc according to the application.
3. Quick architectural lighting solutions provider, quick quotation can be done within an hour and quick delivery can be done within 2-3 weeks.
Client Feedack:
"Yes, the goods were received approximately a week ago. The packaging was excellent and everything is in order so we are pleased with what you sent us."
