Specification

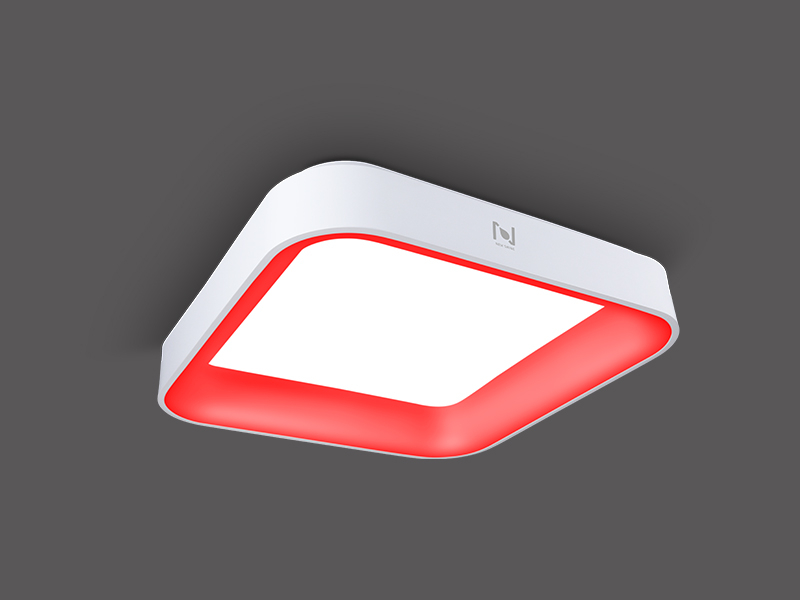

Model: LL0202M-PRO
Diameter(inch): 14.2*14.2/17.7*17.7/23.6*23.6/31.5*31.5"
Diameter(MM): 360*360/450*450/600*600/800*800mm
CCT: 3000K/3500K/4000K
Efficacy: 70lm/w
PF: ≧0.9
CRI: ≧90
Dimming: 0-10V
Driver: ARCATA or equivalent
LED: Samsung or equivalent
Material: Aluminum, PMMA
Input Voltage: AC220-240V / AC120-277V
LED Lifetime: >50,000H
Mounting: Pendant, Surface mounted
Package: PE Foam with master carton
Features
◆ Flexible MOQ.
◆ ETL listed, 5 years warranty.
◆ 2 color finishes(black, white), can be customized
◆ Quite nice craftsmanship.
◆ The light comes out of the middle to shine the bevel making space very unique.
◆ Different colors for the inside bevel and outside frame are available to match the vibe of your application.
◆ The packaging has passed strict tests which is suitable for air shipping.
◆ Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.
Other Products In The Same Family
| Model No. | Power | Size (mm/inch) | Input Voltage(v) | CRI | CCT (K) | PF | Efficacy (LM/W) | Body Color | Beam (degree) | Installation | Material |
| LL0202S-15W-PRO | 15W | 360*360*88 / 14.2*14.2*3.5 | AC120-277V/ AC220-240V | ≧90 | 3000K/ 3500K/ 4000K | ≧0.9 | 70lm/w | White/ black | 160 | central canopy suspended with 5ft (1.5m) aircraft cable&power cables; | Alu+PMMA |
| LL0202S-25W-PRO | 25W | 450*450*88 / 17.7*17.7*3.5 | |||||||||
| LL0202S-36W-PRO | 36W | 600*600*88 / 23.6*23.6*3.5 | |||||||||
| LL0202S-50W-PRO | 50W | 800*800*88 / 31.5*31.5*3.5 | |||||||||
| LL0202M-15W-PRO | 15W | 360*360*116 / 14.2*14.2*4.6 | AC120-277V/ AC220-240V | ≧90 | 3000K/ 3500K/ 4000K | ≧0.9 | 70lm/w | White/ black | 160 | surface mounted | Alu+PMMA |
| LL0202M-25W-PRO | 25W | 450*450*116 / 17.7*17.7*4.6 | |||||||||
| LL0202M-36W-PRO | 36W | 600*600*116 / 23.6*23.6*4.6 | |||||||||
| LL0202M-50W-PRO | 50W | 800*800*116 / 31.5*31.5*4.6 |
