Specification
Model: LL0213AMAC
Diameter(INCH): 11.8", 15.7", 23.6", 35.4", 47.2"
Diameter(MM): 300mm, 400mm, 600mm, 900mm, 1200mm
CCT: 3000K/3500K/4000K
Efficacy: 70lm/w
PF: ≧0.9
CRI: ≧90
Dimming: 0-10V
Driver: ARCATA or equivalent
LED: Samsung or equivalent
Material: Silicon, Aluminum, Polyester Fiber
Input Voltage: AC120-277V/ AC220-240V
LED Lifetime: >50,000H
Mounting: Pendant, Surface mounted
Package: PE Foam with master carton
Features
◆ Flexible MOQ.
◆ ETL listed, 5 years warranty.
◆ 2 color finishes(black, white), can be customized.
◆ Quite nice craftsmanship.
◆ No dark area, soft and even light distribution.

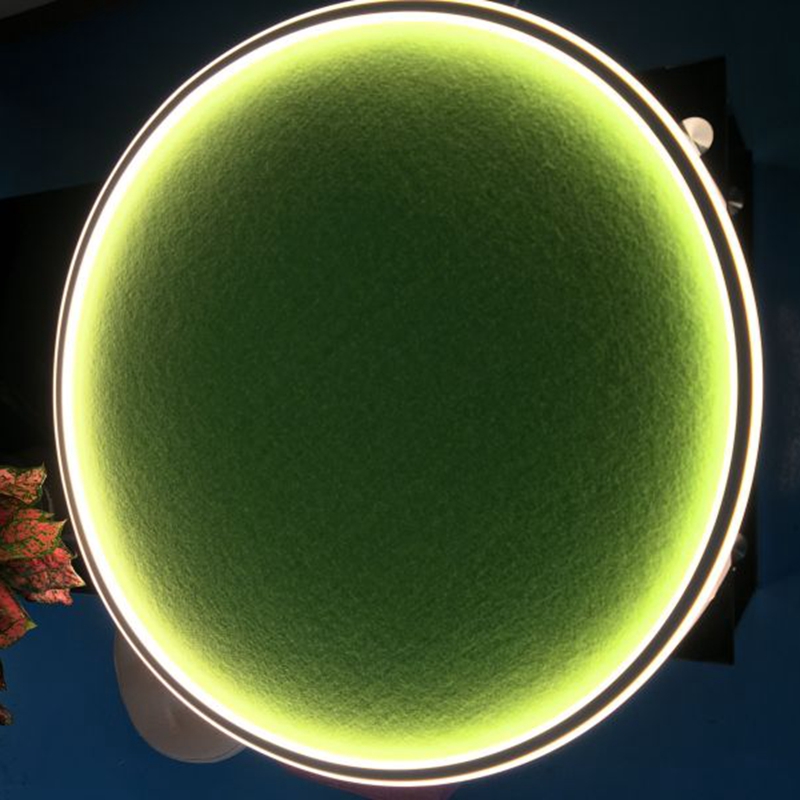

◆ Acoustic version with 38 acoustic felt colors for option.
◆ 300 degree emmiting versions are available.
◆ Good for use in hotel, office, public building, shopping mall, etc.
◆ The packaging has passed strict tests which is suitable for air shipping.
◆ Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.
Other Products In The Same Family
| Model No. | Power | Size (mm/inch) | Input Voltage(v) | CRI | CCT (K) | PF | Efficacy (LM/W) | Body Color | Beam (degree) | Installation | Material |
| LL0213AMAC-32W | 32W | D300*28 / D11.8*1.1 | AC120-277V/ AC220-240V | ≧90 | 3000K/ 3500K/ 4000K | ≧0.9 | 70lm/w | White/ Black | 300 | Surface Mounted | Silicon+Alu +polyester fiber |
| LL0213AMAC-45W | 45W | D400*28 / D15.7*1.1 | |||||||||
| LL0213AMAC-60W | 60W | D600*28 / D23.6*1.1 | |||||||||
| LL0213AMAC-100W | 100W | D900*28 / D35.4*1.1 | |||||||||
| LL0213AMAC-135W | 135W | D1200*28 / D47.2*1.1 |
Download
 |
|
|
|
Client Feedback:
"Your lights are doing great in the show room. Customers love them.I think we need to bring more displays. What do you think?"
